Restraint type damping material

Hayadamper

Hayadamper is a rubber-based damping material with excellent weather and heat resistance and high damping performance. It is the product designed for health and environmental protection.

Image diagram

Part No.

Configuration

Standard (thickness × width × length) mm

Features and applications

DT-8D-A

Zinc-plated steel sheet 0.25mm thick
Damping rubber layer
Separator

1.6×300×600

拘DT-8D-A uses 0.25mm thick galvanized steel sheets for the restraint layers.

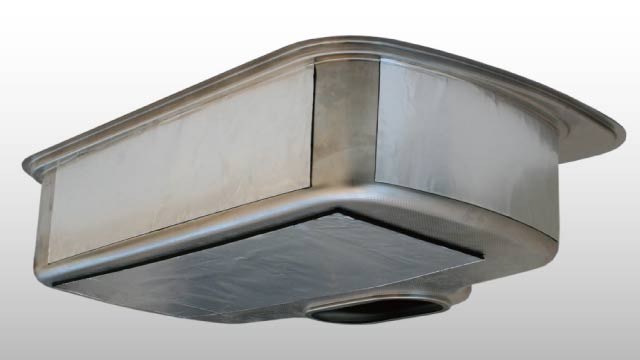

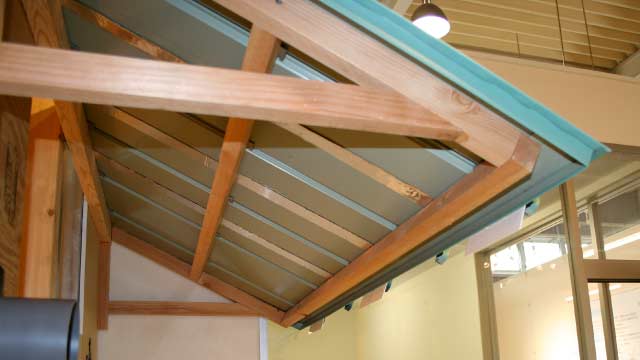

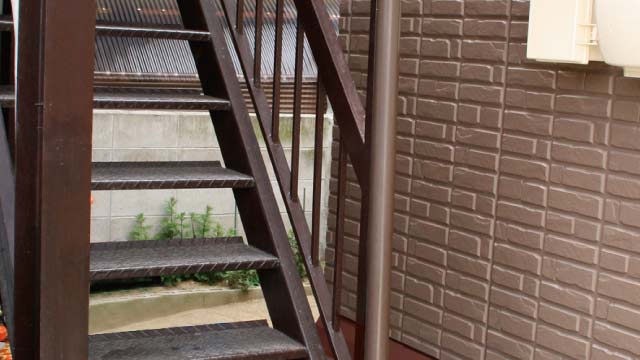

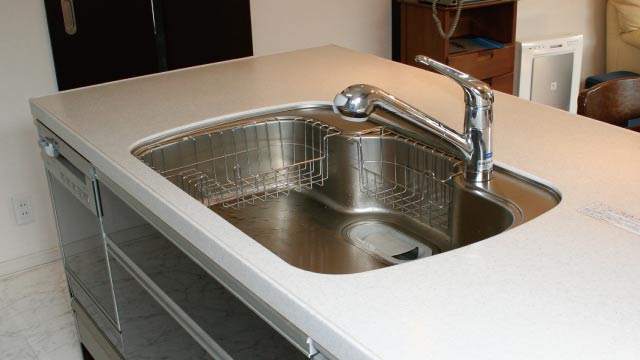

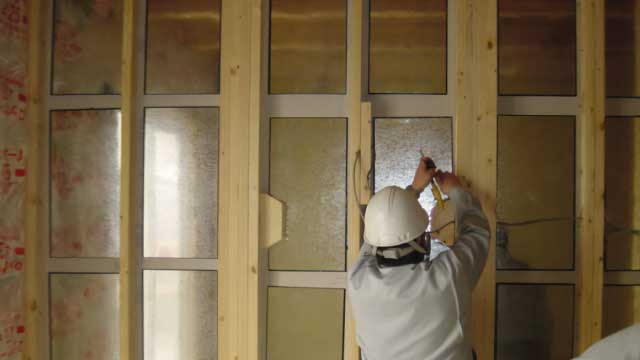

Partition walls, metal roofs, metal stairways, windows, shutter boxes, housing equipment, home appliances, automobiles, etc.

DA-8D-A

Aluminum foil 0.1mm thick
Damping rubber layer
Separator

1.4×60×1000

1.5×300×600

2.0×300×600

3.0×300×600

DA-8D-A uses 0.1mm thick aluminum foil for the restraint layers.
This is good for tracking. The product can be punched and cut.

Metal roofs, metal staircases, windows, shutter boxes, housing equipment, home appliances, automobiles, etc.

DT-HF

Highly corrosion resistant galvanized steel sheet 0.8mm thick
Damping rubber layer
Separator

2.2×300×600

DT-HF uses 0.8mm thick highly corrosion-resistant galvanized steel sheet for the restraint layers. It has excellent rigidity and high damping performance.

Ship’s cabin, engine room walls, ceilings, floors, ducts, and other places with large vibrations
